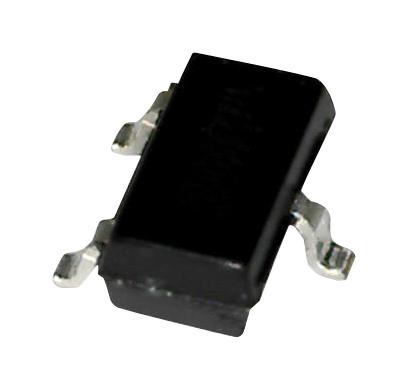

ONSEMI - MMUN2233LT1G - Bipolar Pre-Biased / Digital Transistor, BRT, Single NPN, 50 V, 100 mA, 4.7 kohm, 47 kohm
- Digital Transistor Polarity: Single NPN
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 100mA
- Base Input Resistor R1: 4.7kohm
- Base-Emitter Resistor R2: 47kohm
- Resistor Ratio, R1 / R2: 0.1(Ratio)
- RF Transistor Case: SOT-23
- No. of Pins: 3 Pin
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- DC Collector Current: 100mA
- DC Current Gain hFE: 80hFE
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 400mW
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-23
