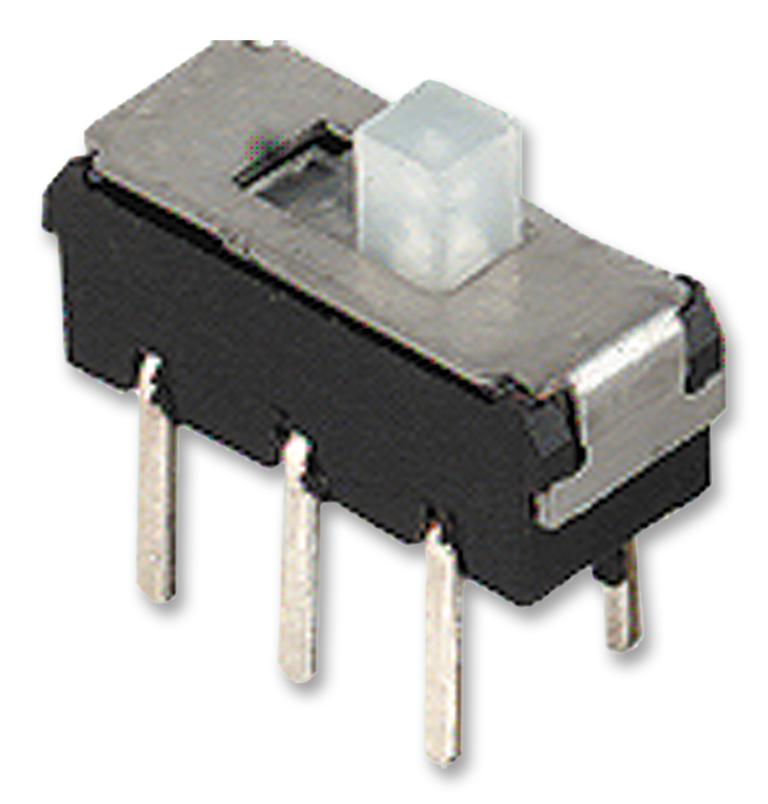

KNITTER-SWITCH - MMP 221 B - Slide Switch, On-On, Through Hole, MMP221, 200 mA
- Contact Configuration: -
- Switch Operation: On-On
- Switch Mounting: Through Hole
- Product Range: MMP221 Series
- Contact Current Max: 200mA
- Contact Voltage AC Max: -
- Contact Voltage DC Max: 12V
- Orientation: Vertical
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Raised
- Actuator Type: Raised Slide
- Contact Current @ Contact Voltage DC Max: 200mA
- Contact Current AC: 200mA
- Contact Current AC Max: 200mA
- Contact Current DC Max: 0.2A
- Contact Resistance: 50mohm
- External Depth: 3.5mm
- External Length / Height: 3.5mm
- External Width: 9mm
- Height: 3.5mm
- Height Max: 5.5mm
- Insulation Resistance: 100Mohm
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Proof Voltage: 500V
- Repeatability: 5000
