Description

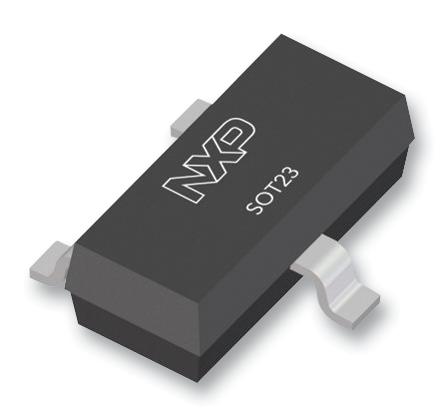

NEXPERIA - MMBZ10VAL,215 - ESD Protection Device, TVS, 14.2 V, TO-236AB, 3 Pins, 900 mV, 360 mW, MMBZ1
- Clamping Voltage Vc Max: 14.2V
- Diode Case Style: TO-236AB
- No. of Pins: 3Pins
- Operating Voltage: 900mV
- Power Dissipation Pd: 360mW
- Product Range: MMBZ1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage Max: 10.5V
- Breakdown Voltage Min: 9.5V
- Breakdown Voltage Range: 9.5V to 10.5V
- Diode Configuration: Common Anode
- Peak Pulse Current Ippm: 1.7A
- Reverse Stand-Off Voltage Vrwm: 6.5V
- TVS Polarity: Unidirectional
