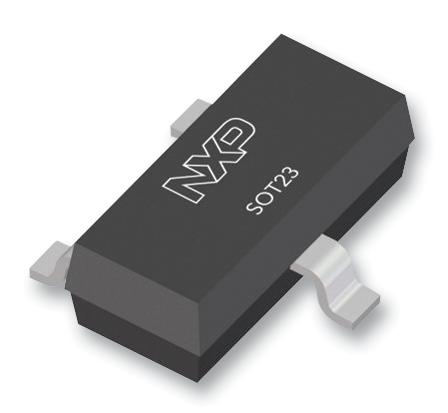

MMBT3904,215 Transistor, NPN, 40V, Sot-23 NEXPERIA

NEXPERIASKU: MMBT3904,215 Order code: 1757935

Price:
Sale price€0,22

Tax included Shipping calculated at checkout

Stock:
In stock (77926 units), ready to be shipped

Documents et téléchargements

Description

NEXPERIA - MMBT3904,215 - Bipolar (BJT) Single Transistor, Switching, NPN, 40 V, 200 mA, 250 mW, TO-236AB, Surface Mount

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 40V
  • Transition Frequency ft: 300MHz
  • Power Dissipation Pd: 250mW
  • DC Collector Current: 200mA
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: TO-236AB
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 200mV
  • Current Ic Continuous a Max: 10mA
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 100
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: Switching
