MMBD914-7-F Diode, SW Array, 75V, 0.35W SOT23 Diodes Inc.

DIODES INC.SKU: MMBD914-7-F Order code: 1773539

Price:
Sale price€0,19

Tax included Shipping calculated at checkout

Stock:
In stock (58624 units), ready to be shipped

Documents et téléchargements

Description

DIODES INC. - MMBD914-7-F - Small Signal Diode, Array, Single, 75 V, 150 mA, 1.25 V, 4 ns, 2 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 75V
  • Forward Current If(AV): 150mA
  • Forward Voltage VF Max: 1.25V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 2A
  • Operating Temperature Max: 150°C

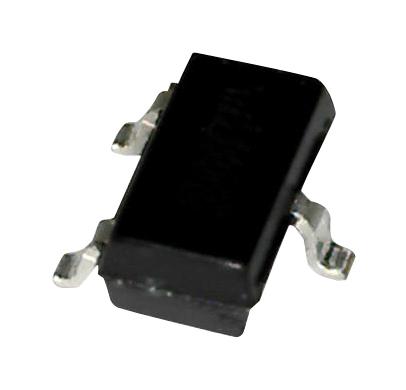

  • Diode Case Style: SOT-23
  • No. of Pins: 3Pins
  • Product Range: MMBD9 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Ifsm: 2A
  • Diode Type: Switching
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Reverse Recovery Time trr Typ: 4ns
  • Termination Type: Surface Mount Device
