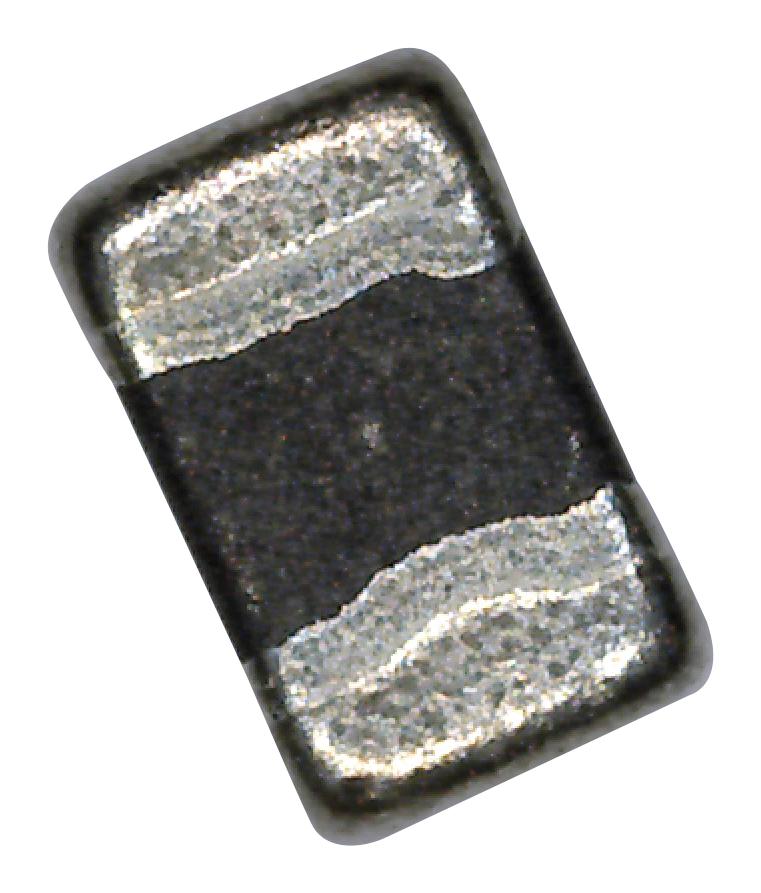

MLS0805-4S7-102 Ferrite Bead, 0.5ohm, 200mA, 0805 FERROXCUBE

FERROXCUBESKU: MLS0805-4S7-102 Order code: 3056533

Price:
Sale price€0,23

Tax included Shipping calculated at checkout

Stock:
In stock (532706 units), ready to be shipped

Documents et téléchargements

Description

FERROXCUBE - MLS0805-4S7-102 - Ferrite Bead, 0805 [2012 Metric], 1 kohm, 200 mA, MLS, 0.5 ohm, ± 25%

  • Ferrite Case Style: 0805 [2012 Metric]
  • Impedance @ 100MHz: 1kohm
  • DC Current Rating: 200mA
  • Product Range: MLS Series
  • DC Resistance Max: 0.5ohm
  • Impedance Tolerance: ± 25%
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (07-Jul-2017)
  • Core Material: Ferrite
  • External Depth: 2mm
  • External Length / Height: 0.74mm
  • External Width: 0.8mm
  • Ferrite Mounting: SMD
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Reel Quantity: 4000
  • Resistance: 0.8ohm
  • Tape Width: 8mm
  • Tolerance +: 25%
  • Tolerance -: 25%
