Description

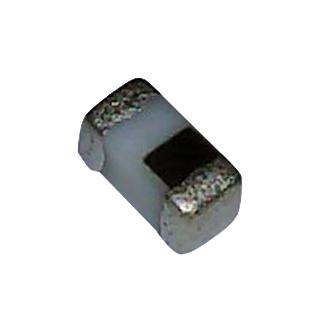

TDK - MLG0603S68NJT000 - Multilayer Inductor, 68 nH, 3.5 ohm, 1.05 GHz, 50 mA, 0201 [0603 Metric], MLG
- Inductance: 68nH
- Product Range: MLG Series
- DC Current Rating: 50mA
- High Frequency Inductor Case: 0201 [0603 Metric]
- Inductor Construction: Multilayer
- DC Resistance Max: 3.5ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.05GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.3mm
- External Length / Height: 0.3mm
- External Width: 0.6mm
- Inductor Case Style: 0201 [0603 Metric]
