Description

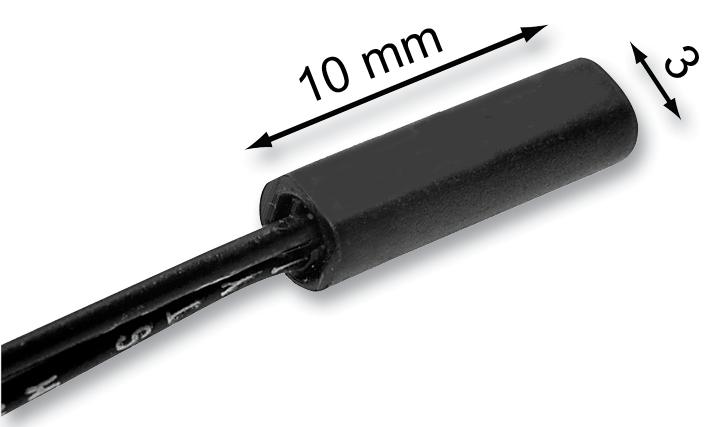

STANDEXMEDER - MK20/1-C-100W - Reed Switch, MK20 Series, Cylindrical, SPST-NO, 10 W, 30 Vdc, 0.5 A, 25 to 35 AT
- Sensing Range Max: -
 - Sensor Mounting: -
 - Operating Temperature Min: -5°C
 - Operating Temperature Max: 80°C
 - Supply Current: 500mA
 - Product Range: MK20 Series
 - SVHC: No SVHC (15-Jan-2018)
 - Body Diameter: 3mm
 - Body Length: 10mm
 - Breakdown Voltage Vbr: 200VDC
 - Contact Configuration: 1NO
 - Contact Current AC Max: 25mA
 - Contact Current DC Max: 25mA
 - Contact Resistance: 150mohm
 - Contact to Contact Capacitance: 0.3pF
 - DC Power: 5W
 - Insulation Resistance: 10Mohm
 - Lead Length: 100mm
 - Off Switching Time: 0.1 ms
 - On Switching Time: 0.4 ms
 - Operating Temperature Range: -5°C to +80°C
 - Pull in Range Max: 20mm
 - Pull in Range Min: 15mm
 - Switching Current AC Max: 0.25A
 - Switching Current DC Max: 0.25A
 - Switching Voltage: 30VDC
 - Switching Voltage AC / DC Max: 175VDC
