Description

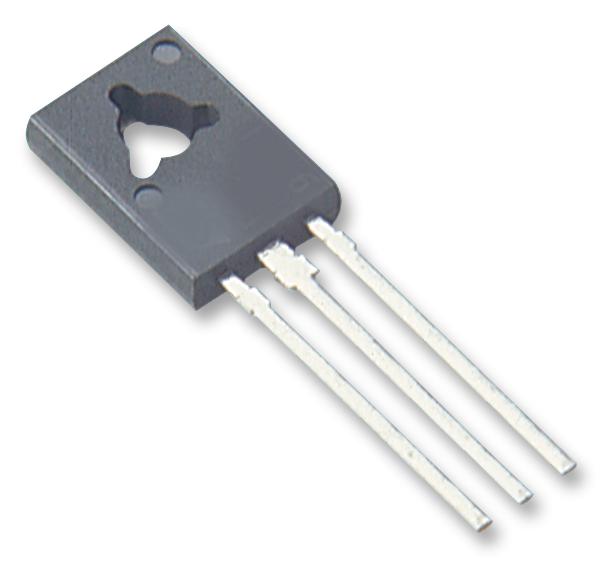

MULTICOMP PRO - MJE340 - Bipolar (BJT) Single Transistor, NPN, 300 V, 500 mA, 20 W, TO-126, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 300V
- Transition Frequency ft: -
- Power Dissipation Pd: 20W
- DC Collector Current: 500mA
- DC Current Gain hFE: 30hFE
- Transistor Case Style: TO-126
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Continuous Collector Current Ic Max: 500mA
- Current Ic Continuous a Max: 500mA
- Current Ic hFE: 50mA
- Full Power Rating Temperature: 25°C
- Hfe Min: 30
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 20W
- Termination Type: Through Hole
- Voltage Vcbo: 300V
