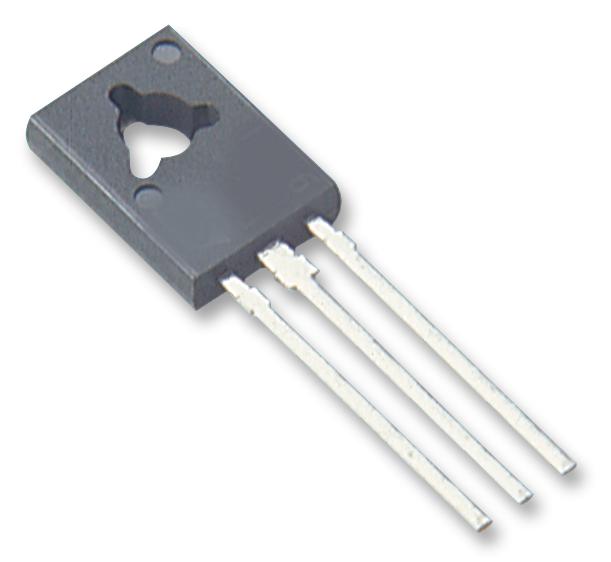

ONSEMI - MJE243G - Bipolar (BJT) Single Transistor, Audio, NPN, 100 V, 4 A, 15 W, TO-225, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 100V
- Transition Frequency ft: 40MHz
- Power Dissipation Pd: 15W
- DC Collector Current: 4A
- DC Current Gain hFE: 40hFE
- Transistor Case Style: TO-225
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 300mV
- Complementary Device: MJE253
- Continuous Collector Current Ic Max: 4A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 1A
- Gain Bandwidth ft Min: 40MHz
- Gain Bandwidth ft Typ: 40MHz
- Hfe Min: 15
- Operating Temperature Min: -65°C
- Power Dissipation Ptot Max: 15W
- Termination Type: Through Hole
- Voltage Vcbo: 100V
