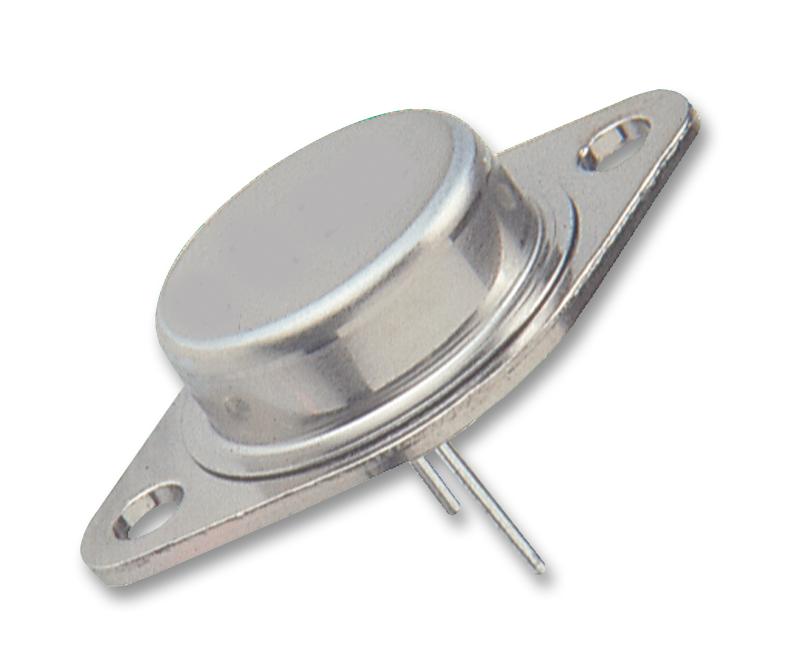

ONSEMI - MJ21194G - Bipolar (BJT) Single Transistor, Audio, NPN, 250 V, 16 A, 250 W, TO-3, Through Hole
- Transistor Polarity: NPN
 - Collector Emitter Voltage V(br)ceo: 250V
 - Transition Frequency ft: 4MHz
 - Power Dissipation Pd: 250W
 - DC Collector Current: 16A
 - DC Current Gain hFE: 75hFE
 - Transistor Case Style: TO-3
 - No. of Pins: 2Pins
 - Operating Temperature Max: 200°C
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: -
 - SVHC: Lead (27-Jun-2018)
 - Alternate Case Style: TO-204AA
 - Av Current Ic: 16A
 - Collector Emitter Saturation Voltage Vce(on): 1.4V
 - Continuous Collector Current Ic Max: 16A
 - Current Ic Continuous a Max: 16A
 - Current Ic hFE: 8A
 - Device Marking: MJ21194
 - Full Power Rating Temperature: 25°C
 - Gain Bandwidth ft Min: 4MHz
 - Gain Bandwidth ft Typ: 4MHz
 - Hfe Min: 25
 - No. of Transistors: 1
 - Operating Temperature Min: -65°C
 - Operating Temperature Range: -65°C to +200°C
 - Power Dissipation Ptot Max: 250W
 - Pulsed Current Icm: 30A
 - Voltage Vcbo: 400V
