Description

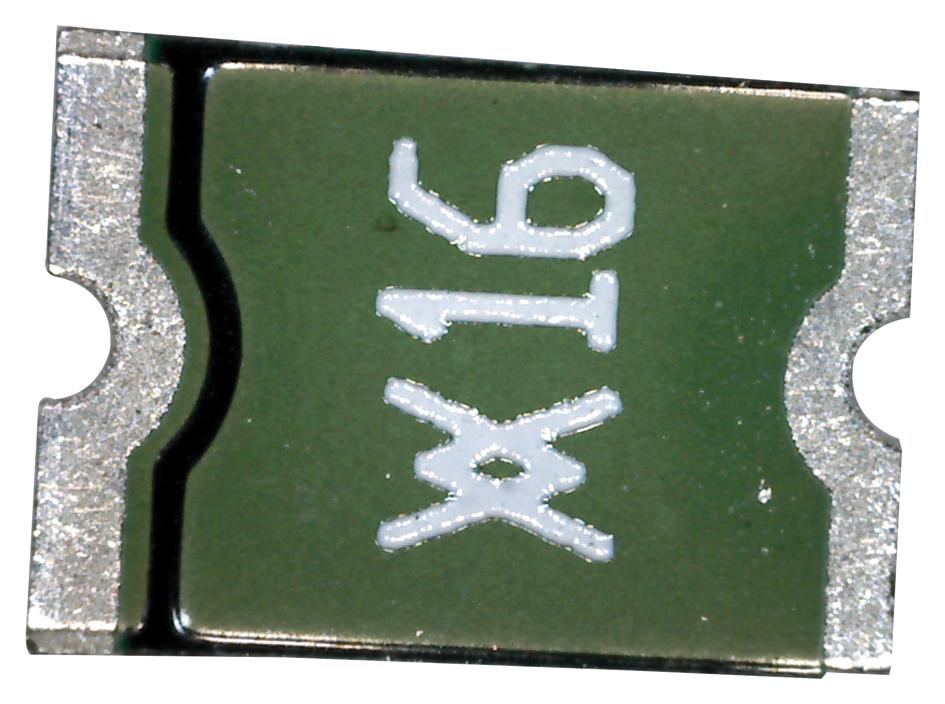

LITTELFUSE - MINISMDC160F-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), PolySwitch miniSMDC, 9 VDC, 1.6 A, 3.2 A, 1 s
- Thermistor Mounting: SMD
- Product Range: PolySwitch miniSMDC Series
- Holding Current: 1.6A
- Tripping Current: 3.2A
- Voltage Rating: 9VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: ELV Compliant, UL Recognised
- Carrying Current Max: 100A
- External Depth: 0.48mm
- External Length / Height: 3.41mm
- External Width: 4.73mm
- Height: 3.41mm
- Holding Current Max Ih: 1.6A
- Initial Resistance Max: 0.1ohm
- Initial Resistance Min: 0.03ohm
- Interrupt Current Max: 100A
- Operating Voltage: 9V
- PTC Fuse Case Style: 1812 [4532 Metric]
- Tab Width: 0.25mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
