Description

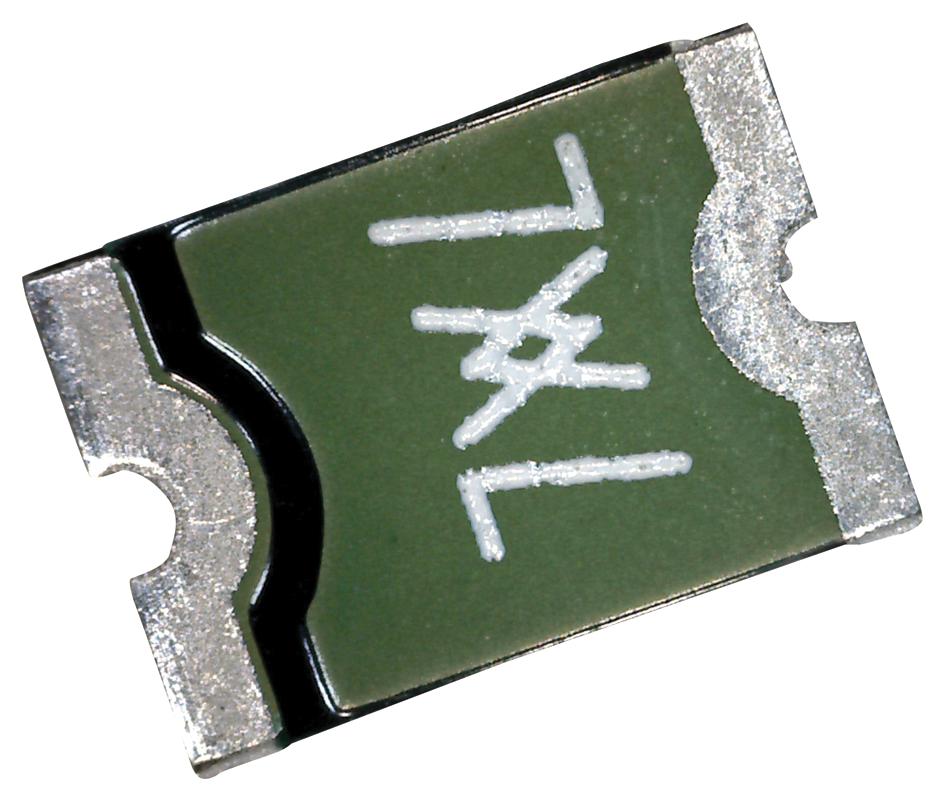

LITTELFUSE - MINISMDC075F-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), PolySwitch miniSMDC, 13.2 VDC, 750 mA, 1.5 A, 0.2 s
- Thermistor Mounting: SMD
- Product Range: PolySwitch miniSMDC Series
- Holding Current: 750mA
- Tripping Current: 1.5A
- Voltage Rating: 13.2VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- External Depth: 0.62mm
- External Length / Height: 4.73mm
- External Width: 3.41mm
- Height: 4.73mm
- Holding Current Max Ih: 0.75A
- Initial Resistance Max: 0.45ohm
- Initial Resistance Min: 0.11ohm
- Interrupt Current Max: 100A
- Operating Voltage: 13.2V
- PTC Fuse Case Style: SMD
- Surface Tripped Temperature Max: 125°C
- Tab Width: 0.25mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
