Description

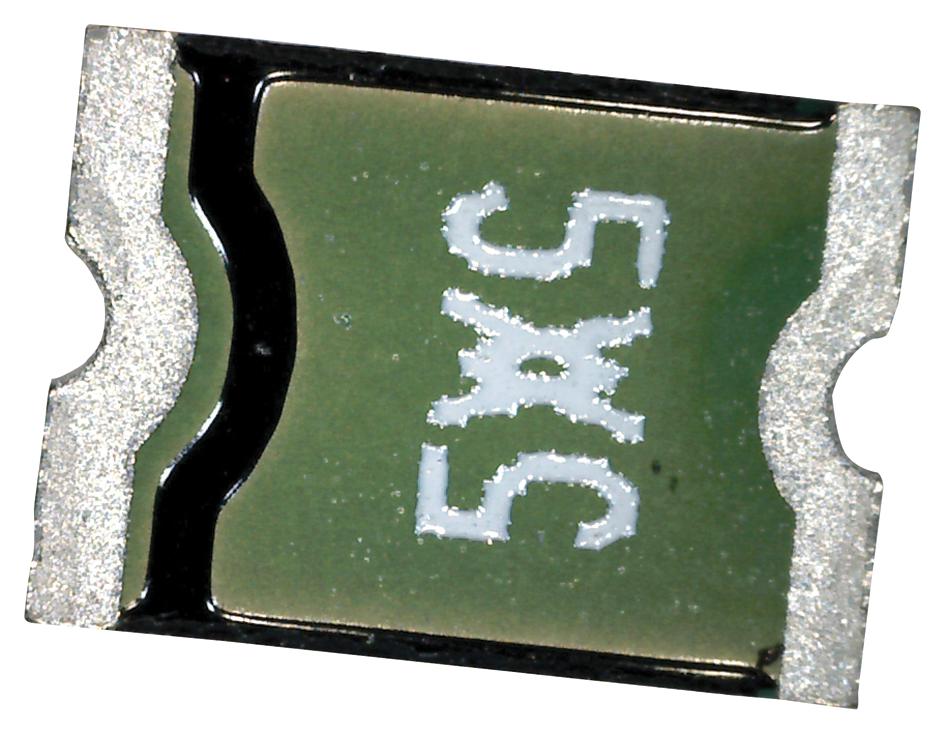

LITTELFUSE - MINISMDC050F-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), PolySwitch miniSMDC Series, 24 VDC, 500 mA, 1 A
- Thermistor Mounting: SMD
- Product Range: PolySwitch miniSMDC Series
- Holding Current: 500mA
- Tripping Current: 1A
- Voltage Rating: 24VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 100A
- External Depth: 0.62mm
- External Length / Height: 4.73mm
- External Width: 3.41mm
- Height: 4.73mm
- Holding Current Max Ih: 0.5A
- Initial Resistance Max: 1ohm
- Initial Resistance Min: 0.15ohm
- Interrupt Current Max: 100A
- Operating Voltage: 24V
- PTC Fuse Case Style: 1812 [4532 Metric]
- Surface Tripped Temperature Max: 125°C
- Tab Width: 0.25mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
