Description

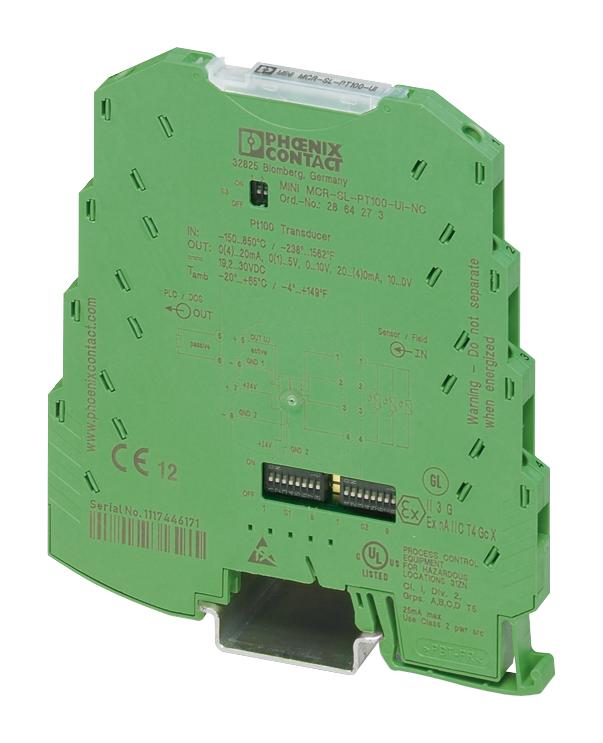

PHOENIX CONTACT - MINI MCR-SL-PT100-UI-NC - Signal Converter, Pt100, Current, Voltage, 1 Channels, 24 VDC
- Signal Conditioner Input: Pt100
 - Signal Conditioner Output: Current, Voltage
 - No. of Output Channels: 1Channels
 - Accuracy %: -
 - Output Accuracy: -
 - Supply Voltage: 24VDC
 - No. of Channels: -
 - Signal Conditioner Mounting: DIN Rail
 - Isolation Input: Isolated
 - Product Range: -
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Bodies: CE, GL, UL
 - External Depth: 102.5mm
 - External Length / Height: 93.1mm
 - External Width: 6.2mm
 - Input Type: RTD
 - No. of Outputs: 1Outputs
 - Operating Temperature Max: 65°C
 - Operating Temperature Min: -20°C
 - Output Type: Current, Voltage
 - Safety Category: ATEX II 3 G Ex nA II T4 X
 - Termination Type: Screw
 - Wire Size AWG Max: 26AWG
 - Wire Size AWG Min: 12AWG
