Description

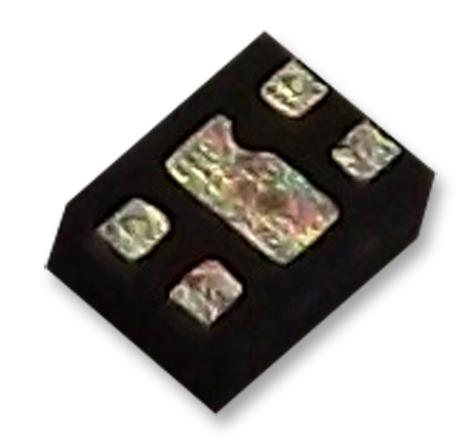

MICROCHIP - MIC94310-PYMT-T5 - Fixed LDO Voltage Regulator, 1.8V to 3.6V, 40mV Dropout, 3Vout, 200mAout, MLF-4
- Output Type: Fixed
- Input Voltage Min: 1.8V
- Input Voltage Max: 3.6V
- Fixed Output Voltage Nom.: 3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 200mA
- Dropout Voltage Vdo: 40mV
- LDO Regulator Case Style: MLF
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3V 200mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (27-Jun-2018)
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 3V
- Output Voltage Nom.: 3V
- Primary Input Voltage: 3.6V
