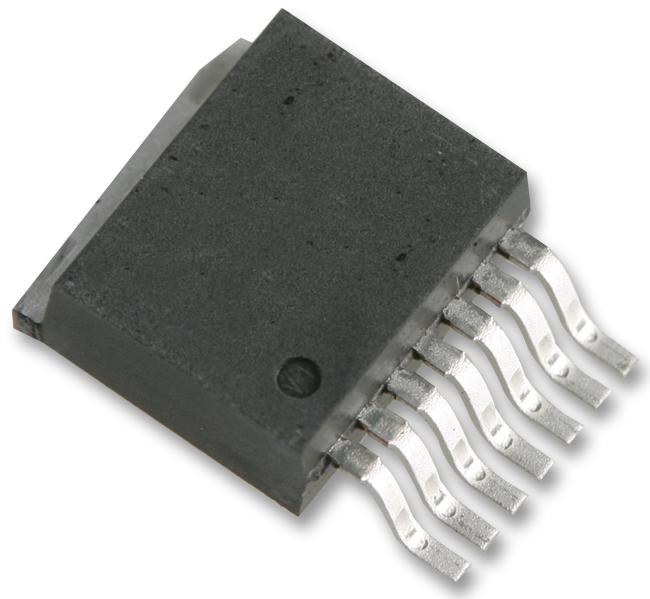

MIC69502WR LDO, Reg, 5.5Vin, 5A, 1%, Adj, 7SPAK Microchip

MICROCHIPSKU: MIC69502WR Order code: 2510425

Price:
Sale price€6,39

Tax included Shipping calculated at checkout

Stock:
In stock (142 units), ready to be shipped

Documents et téléchargements

Description

MICROCHIP - MIC69502WR - LDO Voltage Regulator, Adjustable, 1.65V to 5.5V input, 250 mV drop., 0.5V to 5.5V/5A out, S-PAK-7

  • Output Type: Adjustable
  • Input Voltage Min: 1.65V
  • Input Voltage Max: 5.5V
  • Fixed Output Voltage Nom.: -
  • Adjustable Output Voltage Min: 500mV
  • Adjustable Output Voltage Max: 5.5V
  • Output Current: 5A
  • Dropout Voltage Vdo: 250mV
  • LDO Regulator Case Style: S-PAK
  • No. of Pins: 7Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage Adjustable Range: 500mV to 5.5V
  • Output Voltage Max: 5.5V
  • Output Voltage Min: 500mV
  • Primary Input Voltage: 5.5V
