Description

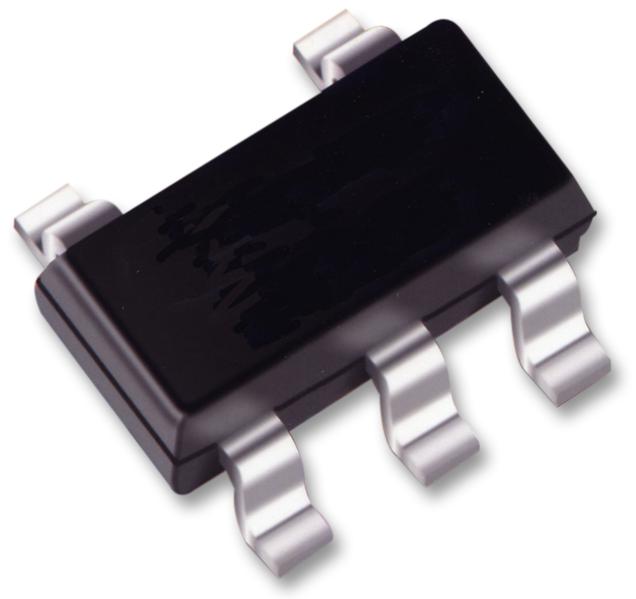

MICROCHIP - MIC5265-2.5YD5-TR - Fixed LDO Voltage Regulator, 2.7V to 5.5V, 210mV Dropout, 2.5Vout, 150mAout, SOT-23-5
- Output Type: Fixed
- Input Voltage Min: 2.7V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 2.5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 150mA
- Dropout Voltage Vdo: 210mV
- LDO Regulator Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 2.5V 150mA LDO Voltage Regulators
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Accuracy %: 2%
- Base Number: 5265
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 0.15A
- Output Voltage Nom.: 2.5V
- Primary Input Voltage: 3.5V
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.7V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Fixed Positive
