Description

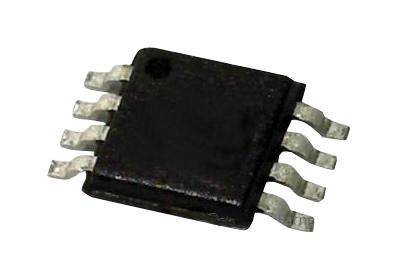

MICROCHIP - MIC5239-5.0YMM - Fixed LDO Voltage Regulator, 2.3V to 30V, 350mV Dropout, 5Vout, 500mAout, SOP-8
- Output Type: Fixed
- Input Voltage Min: 2.3V
- Input Voltage Max: 30V
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 500mA
- Dropout Voltage Vdo: 350mV
- LDO Regulator Case Style: SOP
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 5V 500mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +125°C
- Output Voltage Nom.: 5V
- Primary Input Voltage: 30V
