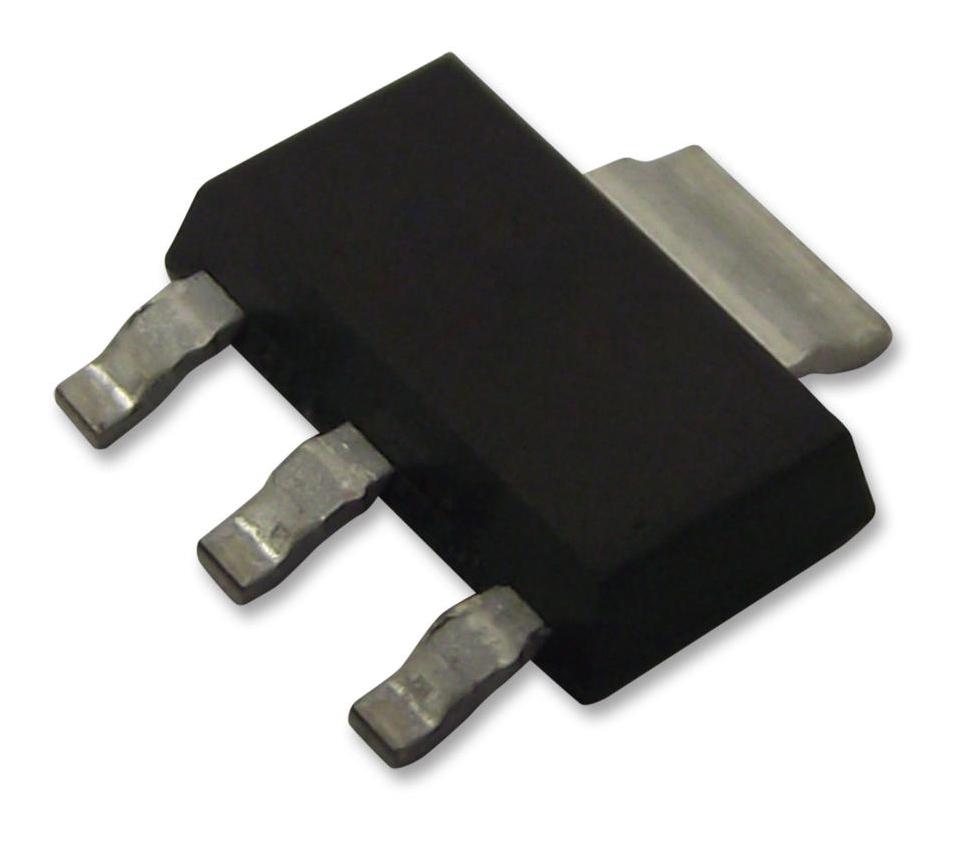

MICROCHIP - MIC5209-2.5YS - Fixed LDO Voltage Regulator, 2.5V to 16V, 350mV Dropout, 2.5Vout, 500mAout, SOT-223-3
- Output Type: Fixed
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- Fixed Output Voltage Nom.: 2.5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 500mA
- Dropout Voltage Vdo: 350mV
- LDO Regulator Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 2.5V 500mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Operating Temperature Range: -40°C to +125°C
- Output Voltage Nom.: 2.5V
- Primary Input Voltage: 16V
