Description

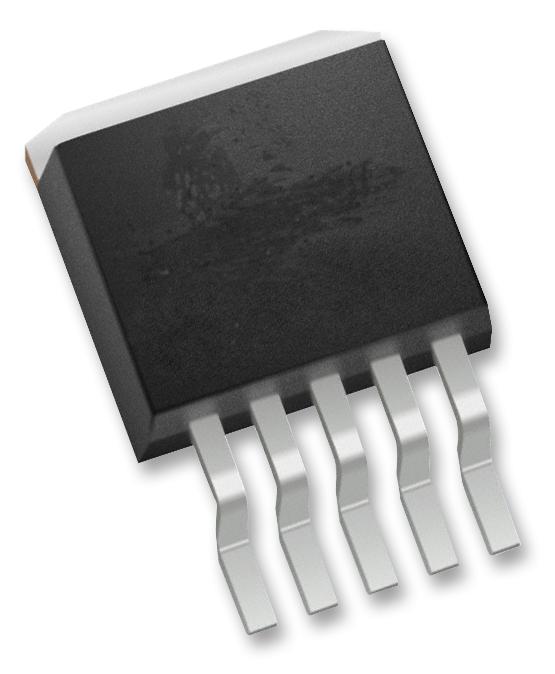

MICROCHIP - MIC37252WR - LDO Voltage Regulator, Adjustable, 3V to 6V input, 550 mV drop., 1.24V to 5.5V/2.5A out, S-PAK-5
- Output Type: Adjustable
- Input Voltage Min: 3V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.24V
- Adjustable Output Voltage Max: 5.5V
- Output Current: 2.5A
- Dropout Voltage Vdo: 550mV
- LDO Regulator Case Style: S-PAK
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +125°C
- Output Voltage Adjustable Range: 1.24V to 5.5V
- Output Voltage Max: 5.5V
- Output Voltage Min: 1.24V
- Primary Input Voltage: 6V
