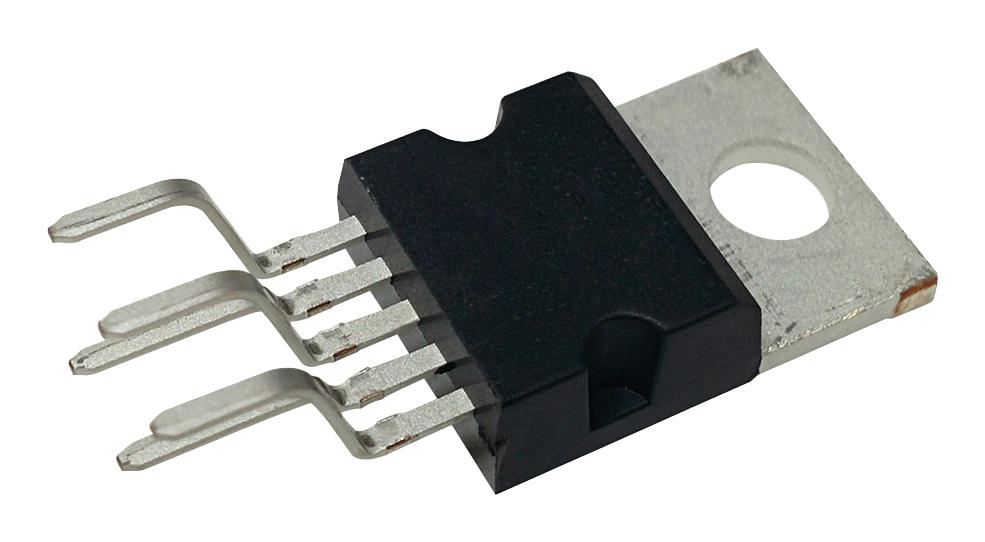

MICROCHIP - MIC2941AWT - LDO Voltage Regulator, Adjustable, 2V to 26V input, 400 mV drop., 1.24V to 26V/1.25A out, TO-220-5
- Output Type: Adjustable
- Input Voltage Min: 2V
- Input Voltage Max: 26V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.24V
- Adjustable Output Voltage Max: 26V
- Output Current: 1.25A
- Dropout Voltage Vdo: 400mV
- LDO Regulator Case Style: TO-220
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: MIC2940A-xx Family
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 2.5%
- No. of Outputs: 1Outputs
- Output Voltage Adjustable Range: 1.24V to 26V
- Output Voltage Max: 26V
- Output Voltage Min: 1.24V
- Supply Voltage Min: 4.3V
- Termination Type: Through Hole
- Voltage Drop @ Rated Current: 400mV
- Voltage Regulator Type: Regulator Controller
