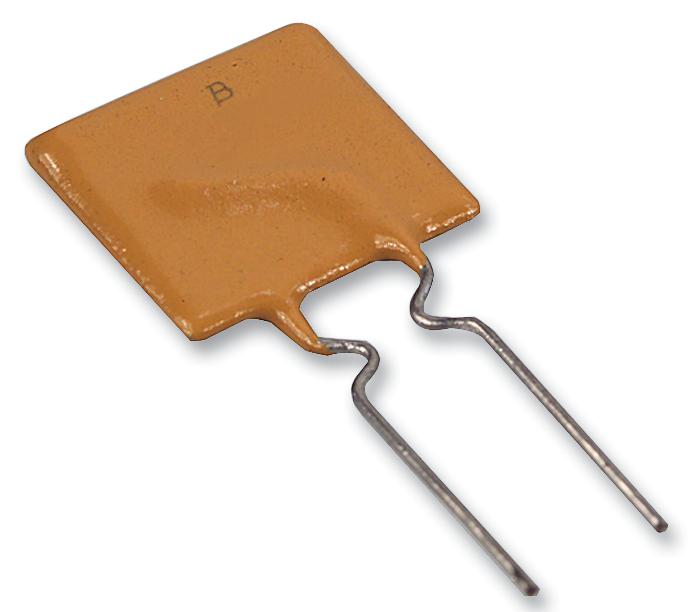

BOURNS - MF-R090-0-9 - Resettable Fuse, PPTC, MF-R, 30 VDC, 900 mA, 1.8 A, 5.9 s, Rectangular
- Thermistor Mounting: Through Hole
- Product Range: MF-R Series
- Holding Current: 900mA
- Tripping Current: 1.8A
- Voltage Rating: 30V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Body Diameter: 7.4mm
- Case Material: Epoxy polymer
- Current Max: 40A
- External Depth: 3mm
- External Length / Height: 12.2mm
- External Width: 7.4mm
- Height: 12.2mm
- Holding Current Max Ih: 0.9A
- Initial Resistance Max: 0.12ohm
- Initial Resistance Min: 0.07ohm
- Lead Diameter: 0.51mm
- Lead Length: 7.6mm
- Lead Spacing: 5.1mm
- PTC Fuse Case Style: Radial Leaded
- Surface Tripped Temperature Max: 125°C
- Termination Type: Radial Leaded
- Thermistor Type: PTC Resettable Fuse
