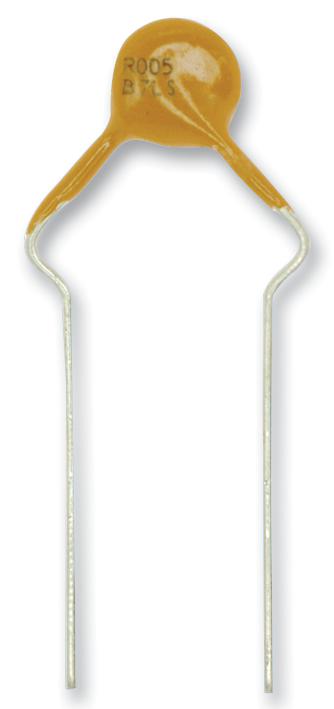

BOURNS - MF-R005-0 - Resettable Fuse, PPTC, MF-R, 60 VDC, 50 mA, 100 mA, 5 s, Round
- Thermistor Mounting: Through Hole
- Product Range: MF-R Series
- Holding Current: 50mA
- Tripping Current: 100mA
- Voltage Rating: 60V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Body Diameter: 8mm
- Carrying Current Max: 40A
- Case Material: Epoxy polymer
- Current Max: 40A
- External Depth: 3.1mm
- External Length / Height: 8.3mm
- External Width: 7.4mm
- Holding Current Max Ih: 0.05A
- Initial Resistance Max: 11.1ohm
- Initial Resistance Min: 7.3ohm
- Lead Diameter: 0.405mm
- Lead Length: 7.6mm
- Lead Spacing: 5.1mm
- Operating Voltage: 60V
- PTC Fuse Case Style: Radial Leaded
- Surface Tripped Temperature Max: 125°C
- Termination Type: Radial Leaded
- Thermistor Type: PTC Resettable Fuse
