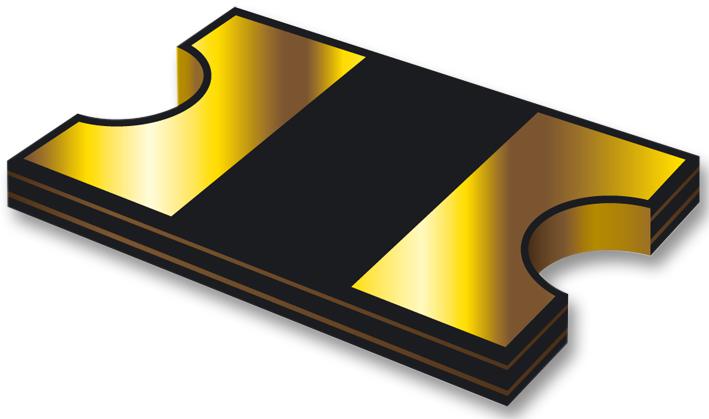

mF-PSMF035X-2 Fuse, Resettable PTC, 6V, 350mA, 0805 Bourns

BOURNSSKU: MF-PSMF035X-2 Order code: 1294875

Price:
Sale price€1,33

Tax included Shipping calculated at checkout

Stock:
In stock (2235 units), ready to be shipped

Documents et téléchargements

Description

BOURNS - MF-PSMF035X-2 - Resettable Fuse, PPTC, 0805 (2012 Metric), MF-PSMF, 6 VDC, 350 mA, 750 mA, 0.1 s

  • Thermistor Mounting: SMD
  • Product Range: MF-PSMF Series
  • Holding Current: 350mA
  • Tripping Current: 750mA
  • Voltage Rating: 6V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Carrying Current Max: 40A
  • Current Max: 40A
  • Current Temperature: 20°C
  • External Depth: 1.35mm
  • External Length / Height: 0.65mm
  • External Width: 2.15mm
  • Holding Current Max Ih: 0.35A
  • Initial Resistance Max: 1.2ohm
  • Initial Resistance Min: 0.25ohm
  • Operating Voltage: 6V
  • PTC Fuse Case Style: 0805 [2012 Metric]
  • Resistance @ Temperature: 0.25ohm
  • Resistance Temperature: 20°C
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
  • Trip Time: 0.1s
