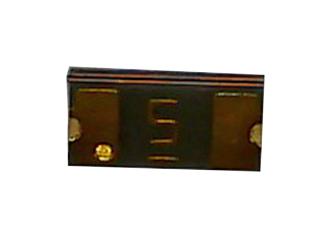

BOURNS - MF-NSMF075-2 - Resettable Fuse, PPTC, 1206 (3216 Metric), MF-NSMF, 6 VDC, 750 mA, 1.5 A, 0.1 s
- Thermistor Mounting: SMD
 - Product Range: MF-NSMF Series
 - Holding Current: 750mA
 - Tripping Current: 1.5A
 - Voltage Rating: 6V
 - Operating Temperature Min: -40°C
 - Operating Temperature Max: 85°C
 - Automotive Qualification Standard: AEC-Q200
 - SVHC: No SVHC (15-Jan-2018)
 - Approval Bodies: CSA, TUV
 - Approval Category: UL Recognised
 - Carrying Current Max: 100A
 - Current Max: 100A
 - Current Temperature: 23°C
 - External Depth: 1.4mm
 - External Length / Height: 0.7mm
 - External Width: 3mm
 - Height: 0.7mm
 - Holding Current Max Ih: 0.75A
 - Initial Resistance Max: 0.4ohm
 - Initial Resistance Min: 0.1ohm
 - Operating Voltage: 6V
 - PTC Fuse Case Style: 1206 [3216 Metric]
 - Resistance @ 10% Rated Current Typ: 0.4ohm
 - Resistance @ Temperature: 0.1ohm
 - Resistance Temperature: 23°C
 - Tab Width: 0.25mm
 - Termination Type: Surface Mount Device
 - Thermistor Type: PTC Resettable Fuse
 - Trip Time: 0.1s
