Description

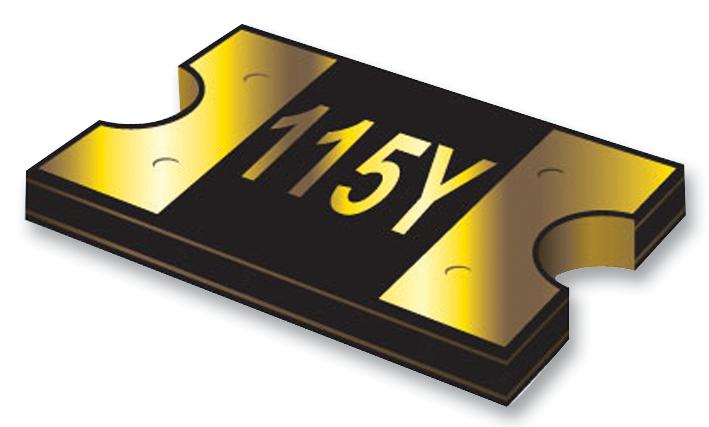

BOURNS - MF-MSMF200-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 8 VDC, 2 A, 4 A, 3 s
- Thermistor Mounting: SMD
- Product Range: MF-MSMF Series
- Holding Current: 2A
- Tripping Current: 4A
- Voltage Rating: 8V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 40A
- Current Max: 40A
- External Depth: 0.7mm
- External Length / Height: 3.24mm
- External Width: 4.55mm
- Holding Current Max Ih: 2A
- Initial Resistance Max: 0.08ohm
- Initial Resistance Min: 0.02ohm
- Operating Voltage: 8V
- PTC Fuse Case Style: 1812 [4532 Metric]
- Resistance: 0.02ohm
- Resistance @ Temperature: 0.08ohm
- Resistance Temperature: 23°C
- Surface Tripped Temperature Max: 125°C
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
- Trip Time: 3s
