Description

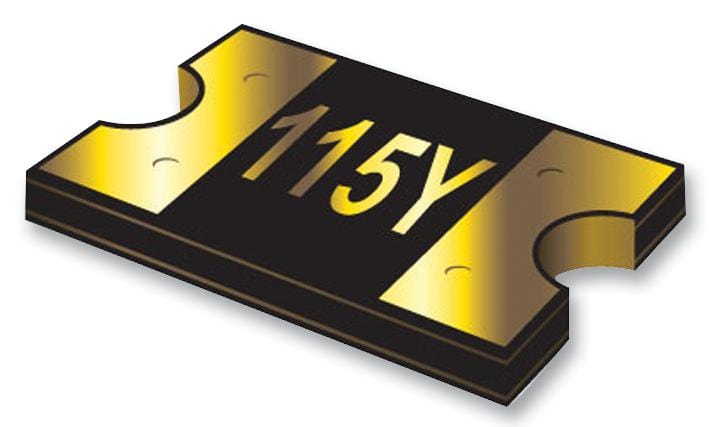

BOURNS - MF-MSMF050-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 15 VDC, 500 mA, 1 A, 0.15 s
- Thermistor Mounting: SMD
- Product Range: MF-MSMF Series
- Holding Current: 500mA
- Tripping Current: 1A
- Voltage Rating: 15V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Carrying Current Max: 100A
- Case Material: Epoxy polymer
- Current Max: 100A
- External Depth: 0.5mm
- External Length / Height: 3.24mm
- External Width: 4.55mm
- Holding Current Max Ih: 0.5A
- Initial Resistance Max: 1ohm
- Initial Resistance Min: 0.15ohm
- Operating Voltage: 15V
- PTC Fuse Case Style: 1812 [4532 Metric]
- Pitch Max: 4.73mm
- Pitch Min: 4.37mm
- Resistance: 0.15ohm
- Resistance @ Temperature: 1ohm
- Resistance Temperature: 23°C
- Surface Tripped Temperature Max: 125°C
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
