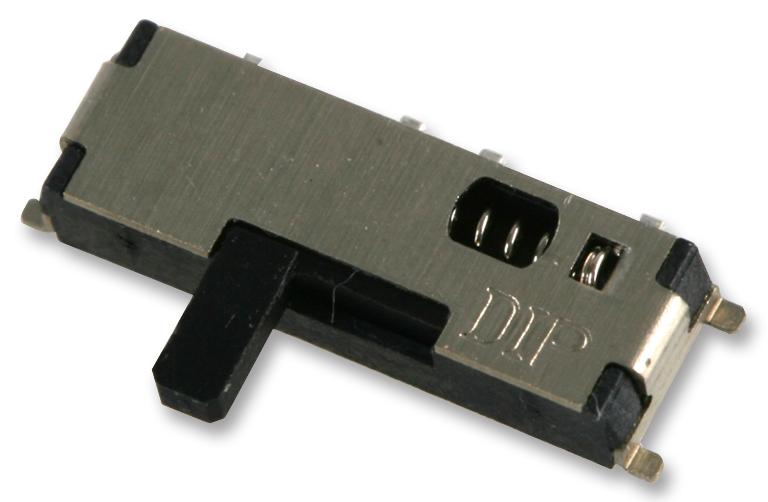

MULTICOMP PRO - MCSSS-12LG - Slide Switch, SPDT, On-(On), Panel Mount, MCSSS, 25 mA
- Contact Configuration: SPDT
- Switch Operation: On-(On)
- Switch Mounting: Panel
- Product Range: MCSSS Series
- Contact Current Max: 25mA
- Contact Voltage AC Max: -
- Contact Voltage DC Max: 24V
- Orientation: Horizontal
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Lever
- Actuator Type: Hinge Lever
- Contact Current DC Max: 25mA
- Contact Resistance: 70mohm
- Dielectric Strength VDC: 100VAC
- External Depth: 3.5mm
- External Length / Height: 2mm
- External Width: 11mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 100VDC
- Lever Length: 2.5mm
- No. of Electrical Operations: 10000
- Operating Force: 1.77N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
