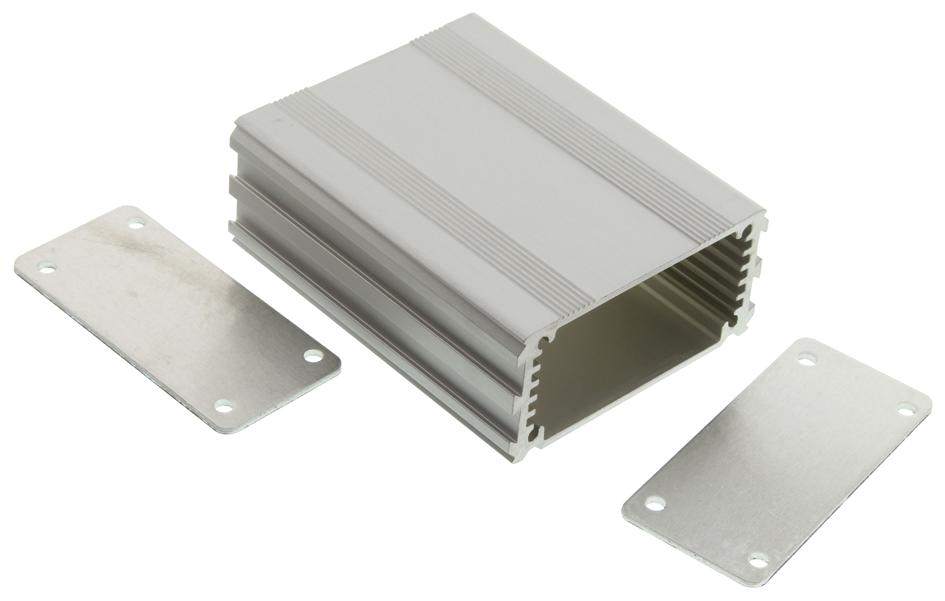

MULTICOMP - MCREBS220 - Metal Enclosure, Extruded, Heat Sink Case, Small, Extruded Aluminium, 30 mm, 108.5 mm, 220 mm
- Enclosure Type: Small
- Enclosure Material: Extruded Aluminium
- External Height - Metric: 30mm
- External Width - Metric: 108.5mm
- External Depth - Metric: 220mm
- IP Rating: -
- Body Colour: Silver
- NEMA Rating: -
- External Height - Imperial: 1.18"
- External Width - Imperial: 4.27"
- External Depth - Imperial: 8.66"
- Product Range: MCR Series
- No. of Switch Holes: -
- SVHC: No SVHC (07-Jul-2017)
- Depth - Imperial: 8.7"
- Depth - Metric: 220mm
- Height - Imperial: 1.2"
- Height - Metric: 30mm
- Internal Height - Metric: 26mm
- Internal Width - Metric: 96.5mm
- Length / Width - Imperial: 4.3"
- Length / Width - Metric: 108.5mm
- Wall Thickness: 2mm
