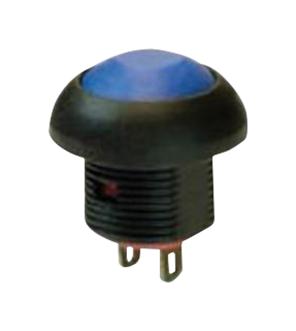

MULTICOMP PRO - MCPAS6-B2-M1CES2-5L7 - Pushbutton Switch, Illuminated, 15.2 mm, SPST, Off-(On), Round, Blue
- Product Range: -
 - Contact Configuration: SPST
 - Switch Operation: Off-(On)
 - Contact Current Max: 500mA
 - Contact Voltage AC Nom: 48V
 - Illumination Colour: Blue
 - Contact Voltage DC Nom: 50V
 - Switch Terminals: Solder Lug
 - SVHC: No SVHC (15-Jan-2018)
 - Actuator / Cap Colour: Transparent
 - Contact Current AC Max: 400mA
 - Contact Current DC Max: 100mA
 - Contact Resistance: 50mohm
 - Contact Voltage VAC: 32V
 - Contact Voltage VDC: 50V
 - IP Rating: IP67
 - No. of Mechanical Operations: 1000000
 - Operating Force: 5N
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -30°C
 - Panel Cutout Diameter: 15.2mm
 - Pushbutton Actuator Style: Round
 - Pushbutton Switch Type: Industrial
 - Switch Mounting: Panel
