Description

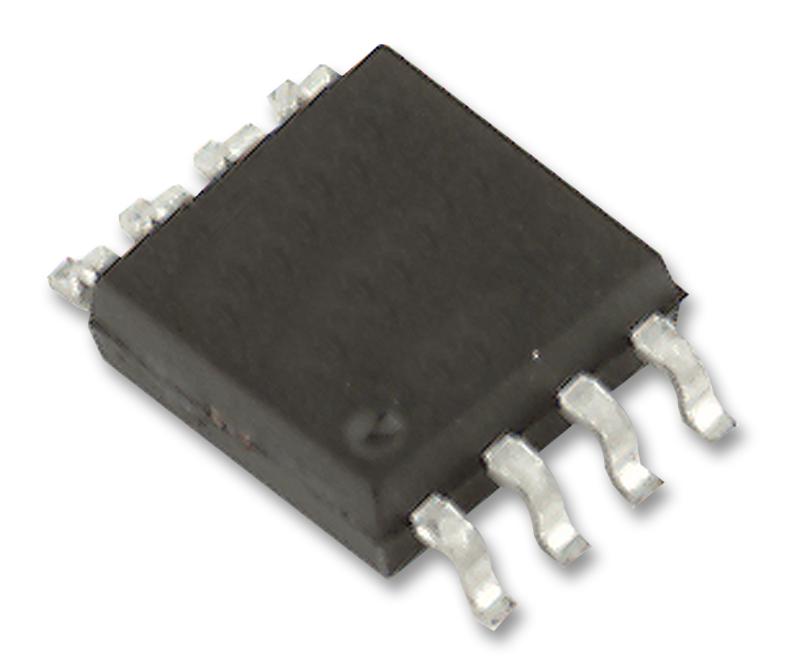

MICROCHIP - MCP3426A0-E/MS - Analogue to Digital Converter, Dual, 16 bit, 15 SPS, Differential, I2C, Single, 2.7 V
- Resolution (Bits): 16bit
- Sampling Rate: 15SPS
- Input Channel Type: Differential
- Data Interface: I2C
- Supply Voltage Type: Single
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- ADC / DAC Case Style: MSOP
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: Dual 16-Bit Sigma-Delta ADCs
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- IC Case Style: SOP
- No. of Channels: 2Channels
- Operating Temperature Range: -40°C to +125°C
- Supply Current: 145µA
- Supply Voltage Range: 2.7V to 5.5V
- Supply Voltage Range - Analogue: 2.7V to 5.5V
