Description

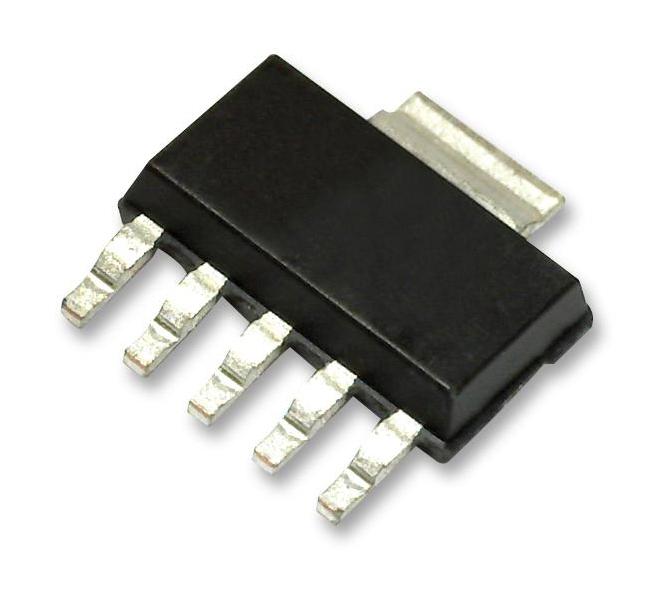

MICROCHIP - MCP1755T-1802E/DC - Fixed LDO Voltage Regulator, 3.6V to 16V, 300mV Dropout, 1.8Vout, 300mAout, SOT-223-5
- Output Type: Fixed
- Input Voltage Min: 3.6V
- Input Voltage Max: 16V
- Fixed Output Voltage Nom.: 1.8V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 300mA
- Dropout Voltage Vdo: 300mV
- LDO Regulator Case Style: SOT-223
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 1.8V 300mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Output Voltage Nom.: 1.8V
- Primary Input Voltage: 16V
