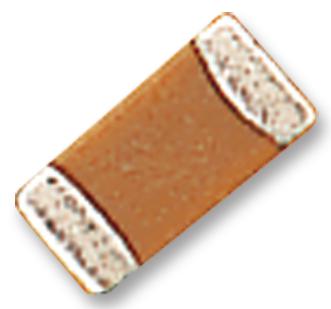

MULTICOMP PRO - MCMT21N1R5C500CT - SMD Multilayer Ceramic Capacitor, 1.5 pF, 50 V, 0805 [2012 Metric], ± 0.25pF, C0G / NP0, MCMT
- Capacitance: 1.5pF
- Voltage Rating: 50V
- Ceramic Capacitor Case: 0805 [2012 Metric]
- Capacitance Tolerance: ± 0.25pF
- Dielectric Characteristic: C0G / NP0
- Product Range: MCMT Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 0.25pF
- Capacitor Terminals: SMD
- Operating Temperature Range: -55°C to +125°C
- Temperature Coefficient: ± 30ppm/°C
