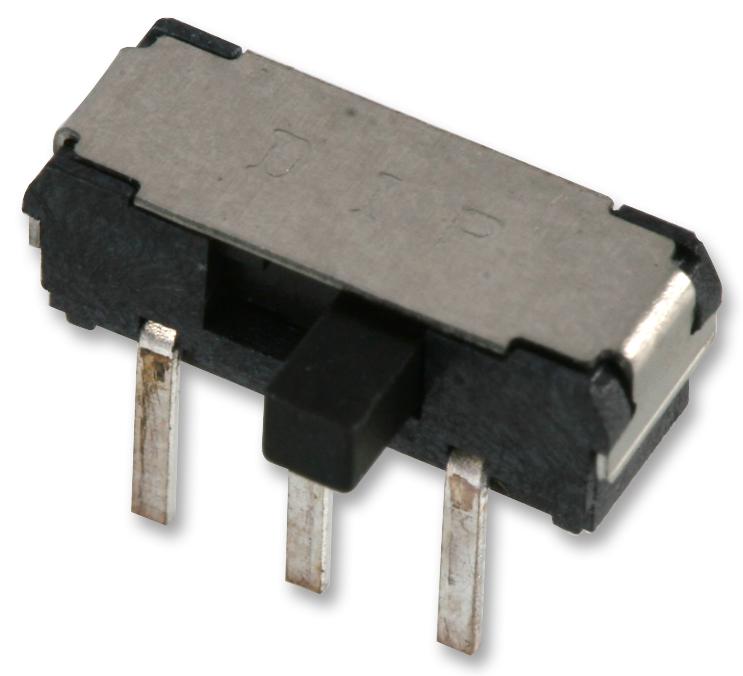

MULTICOMP PRO - MCLSS22 - Slide Switch, DPDT, On-On, Through Hole, MCLSS22, 100 mA
- Contact Configuration: DPDT
- Switch Operation: On-On
- Switch Mounting: Through Hole
- Product Range: MCLSS22 Series
- Contact Current Max: 100mA
- Contact Voltage AC Max: -
- Contact Voltage DC Max: 12V
- Orientation: Horizontal
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Raised
- Actuator Type: Side
- Contact Current DC Max: 100mA
- Contact Resistance: 100mohm
- Dielectric Strength VDC: 500VAC
- External Depth: 3.5mm
- External Length / Height: 3.5mm
- External Width: 9.5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 2.5mm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 10000
- Operating Force: 1.96N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
- Pin Length: 3mm
- Row Pitch: 3.5mm
- Switching Current DC Max: 25mA
