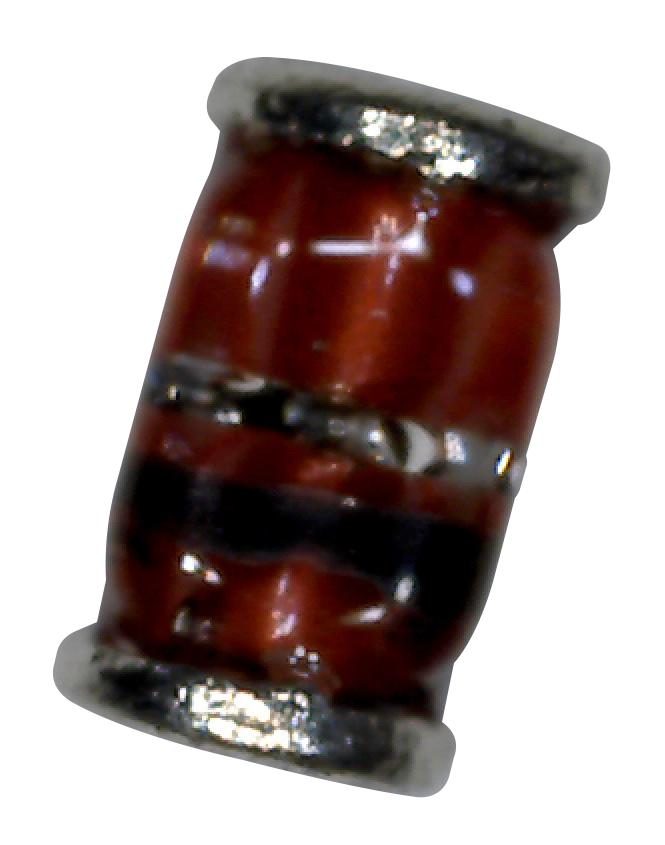

MCL4151-Tr Diode, Switching, MicroMELF Vishay

VISHAYSKU: MCL4151-TR Order code: 1617728

Price:
Sale price€0,25

Tax included Shipping calculated at checkout

Stock:
In stock (1766 units), ready to be shipped

Documenten en downloads

Description

VISHAY - MCL4151-TR - Small Signal Diode, Single, 75 V, 150 mA, 1 V, 4 ns, 2 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 75V
  • Forward Current If(AV): 150mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 2A
  • Operating Temperature Max: 175°C
  • Diode Case Style: MicroMELF
  • No. of Pins: 2Pins
  • Product Range: MCL41 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: No SVHC (27-Jun-2018)
  • Current Ifsm: 2A
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Reverse Recovery Time trr Typ: 4ns
  • Termination Type: Surface Mount Device
