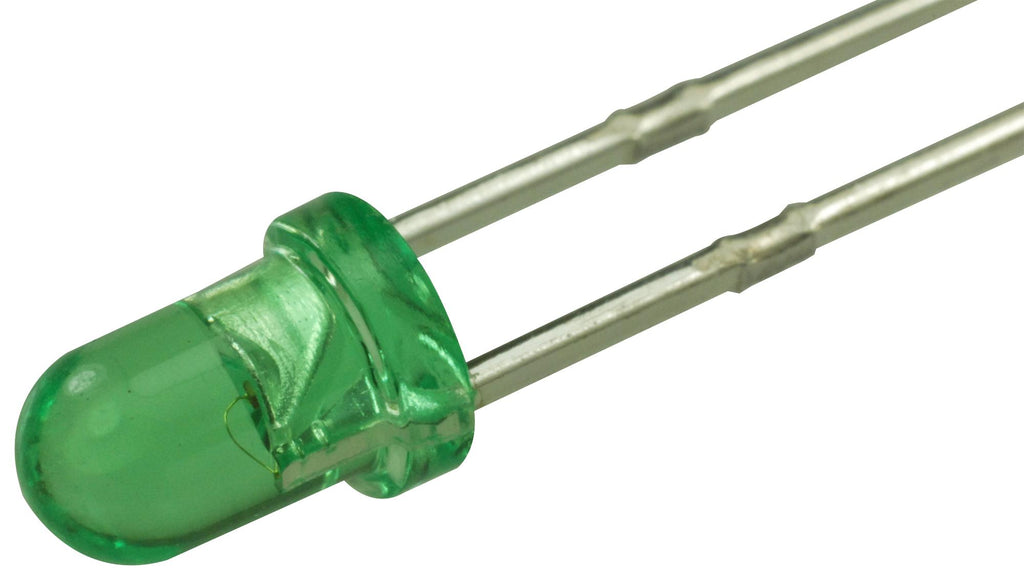

MULTICOMP PRO - MCL034GT - LED, Green, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 570 nm
- LED Colour: Green
 - LED Mounting: Through Hole
 - LED Case Size: T-1 (3mm)
 - Forward Current If: 20mA
 - Forward Voltage: 2.1V
 - Wavelength Typ: 570nm
 - Luminous Intensity: 26mcd
 - Viewing Angle: 36°
 - Lens Shape: Round
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: -
 - SVHC: No SVHC (15-Jan-2019)
 - Bulb Size: T-1 (3mm)
 - Current Rating: 20mA
 - Dominant Wavelength: 570nm
 - Dominant Wavelength Typ: 570nm
 - Forward Current If Max: 20mA
 - Forward Voltage VF Max: 2.6V
 - LED / Lamp Size: 3mm / T-1
 - LED Type: Standard
 - Luminous Intensity Max: 40mcd
 - Luminous Intensity Min: 12mcd
 - Luminous Intensity Typ: 26mcd
 - No. of Pins: 2Pins
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -40°C
 - Operating Temperature Range: -40°C to +85°C
 - Peak Forward Current: 100mA
 - Peak Wavelength: 568nm
 - Reverse Protection Voltage: 5V
 - Storage Temperature Max: +85°C
 - Storage Temperature Min: -40°C
 - Voltage Vf Min: 1.7V
 - Voltage Vf Typ: 2.1V
