Description

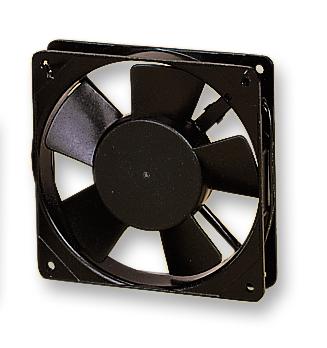

MULTICOMP - MCDP201AT/2122HBL.GN - AC Axial Fan, 230V, Square, 119 mm, 25 mm, Precision Ball Bearing, 78 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 119mm
- External Depth: 25mm
- Noise Rating: 46dBA
- Flow Rate - Imperial: 78cu.ft/min
- Flow Rate - Metric: 133m³/h
- Bearing Type: Precision Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 90mA
- Product Range: Slimline Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL
- External Height: 119mm
- External Width: 119mm
- Fixing Centres: 105mm
- Fixing Hole Diameter: 4.3mm
- Flammability Rating: UL94V-0
- Frame Dimensions: 119mm x 119mm x 25mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating life Time: 30000h
- Panel Cutout Diameter: 116mm
- Power Consumption: 18W
- Speed Range Max: 2300rpm
- Type: Slimline
