Description

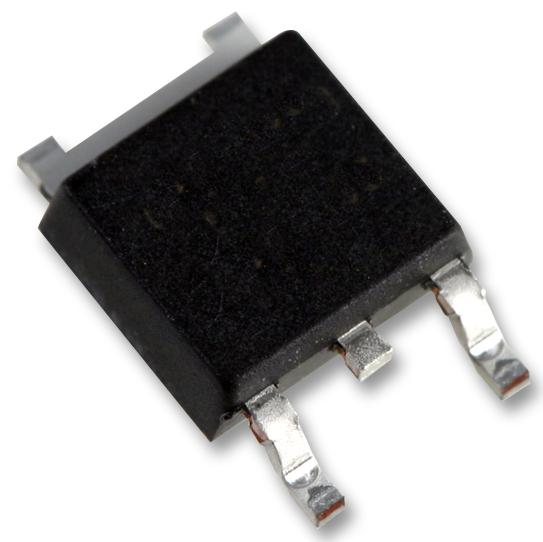

ONSEMI - MC78M15CDTG - Linear Voltage Regulator, 7815, Fixed, Positive, 23V To 35V In, 15V And 0.5A Out, TO-252-3
- Fixed Output Voltage Nom.: 15V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Input Voltage Min: 23V
- Input Voltage Max: 35V
- Product Range: 7815 Voltage Regulators
- Output Current: 500mA
- Output Type: Fixed
- Linear Regulator Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Accuracy %: 4%
- Base Number: 78
- IC Generic Number: 78M15
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +150°C
- Operating Voltage Tolerance +: 4%
- Output Current Max: 0.5A
- Output Voltage Max: 15V
- Output Voltage Nom.: 15V
- Primary Input Voltage: 23V
- Supply Voltage Max: 30V
- Supply Voltage Min: 17.5V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Positive Fixed
