Description

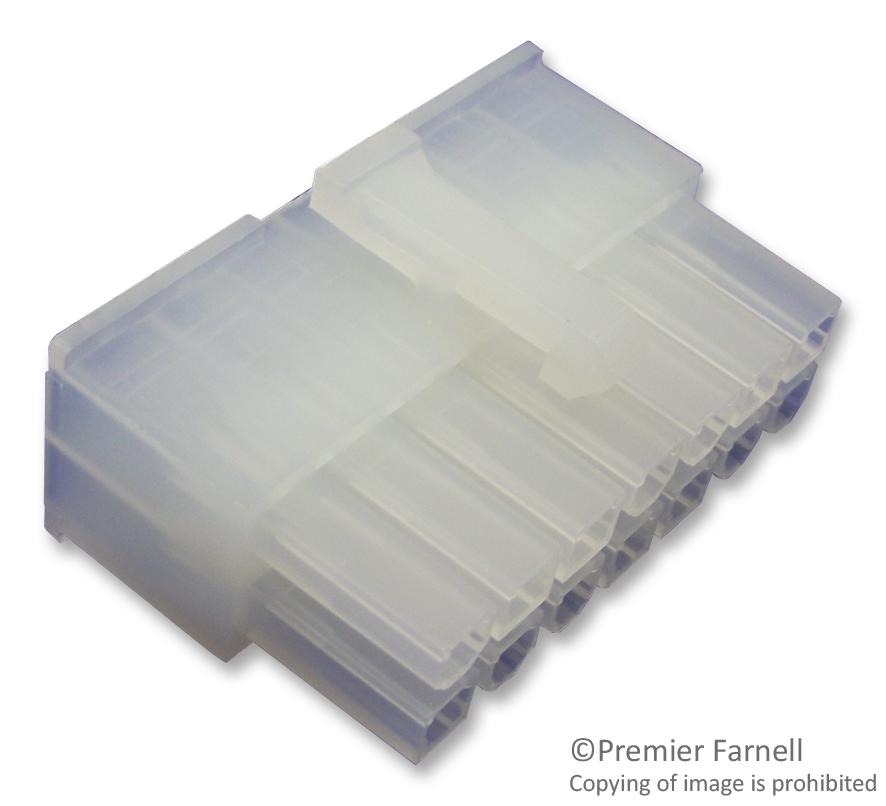

MULTICOMP PRO - MC34515 - Connector Housing, 2257(5557), Receptacle, 12 Ways, 4.2 mm, 4.2mm Pin & Socket Connectors
- Product Range: 2257(5557) Series
- Gender: Receptacle
- No. of Positions: 12Ways
- Pitch Spacing: 4.2mm
- For Use With: 4.2mm Pin & Socket Connectors
- SVHC: No SVHC (15-Jan-2019)
- Colour: White
- Contact Resistance: 10mohm
- Current Rating: 9A
- Flammability Rating: UL94V-2
- Insulation Resistance: 1000Mohm
- Material: High Temp. Plastic
- No. of Rows: 2Rows
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 600V
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 26AWG
