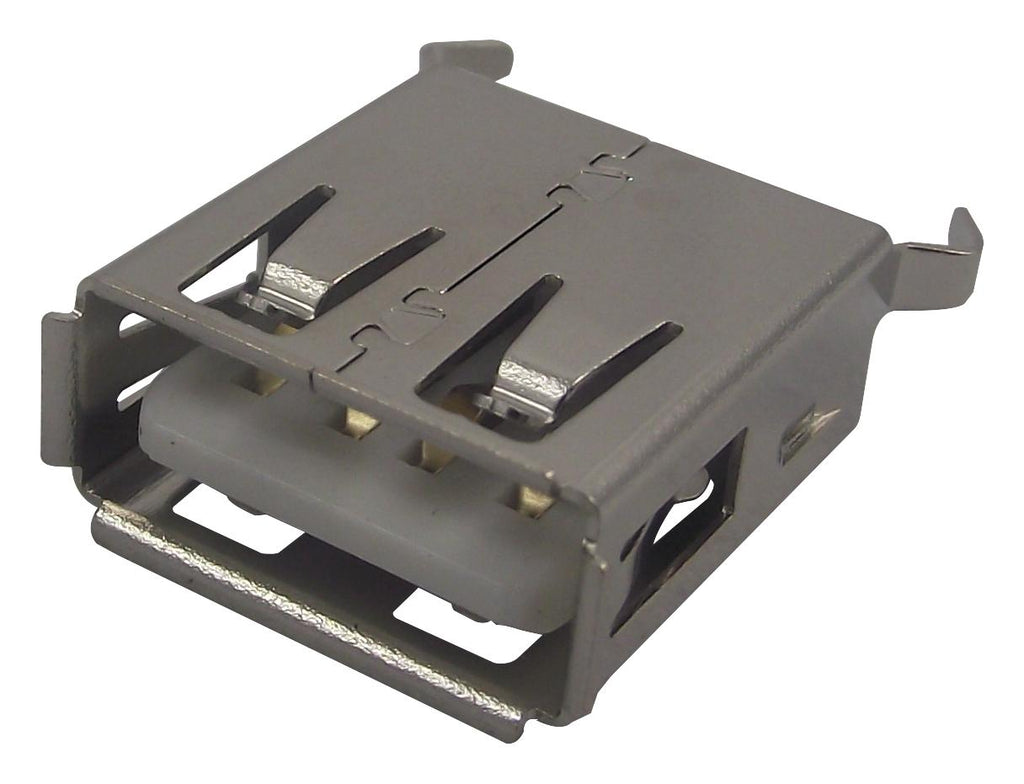

MULTICOMP PRO - MC32595 - USB Connector, USB Type A, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Vertical
- USB Connector Type: USB Type A
- USB Standard: USB 2.0
- Gender: Receptacle
- No. of Positions: 4Ways
- Connector Mounting: Through Hole Mount
- Orientation: Vertical
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting Orientation: PC Board
- Connector Type: USB A
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Copper Alloy, Nickel Plated
- No. of Contacts: 4Contacts
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Voltage Rating VAC: 30V
- Withstand Voltage: 750V
