Description

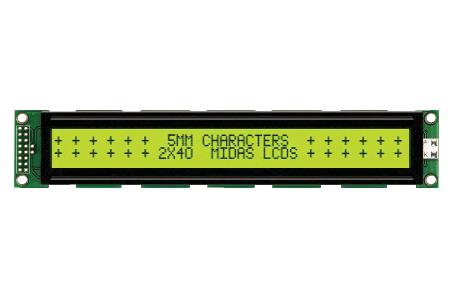

MIDAS - MC24005A6W-SPTLY-V2 - Alphanumeric LCD, 40 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective
- Character Count x Line: 40 x 2
- Display Appearance: Black on Yellow / Green
- Logic Voltage: 5V
- Interface Type: Parallel
- Font Set: English, Japanese
- Display Mode: Transflective
- Character Size: 5.55mm
- LCD Display Type: STN
- Module Size: 182mm x 33.5mm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- Display Construction: COB
- Backlighting Colour: Yellow / Green
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
