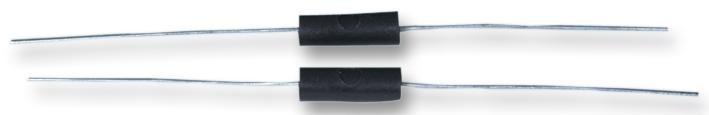

MULTICOMP - MC14715 - Current Sense Resistor, 0.1 ohm, MC Low Ohm, 1 W, Wirewound, Axial Leaded, ± 1%
- Resistance: 0.1ohm
- Product Range: MC Low Ohm Series
- Power Rating: 1W
- Resistor Element Material: Wirewound
- Resistor Case Style: Axial Leaded
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 90ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 2.39mm
- External Length / Height: 10.31mm
- Lead Diameter: 0.8mm
- Lead Length: 39.67mm
- No. of Pins: 2Pins
- Operating Temperature Max: 275°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +275°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 90ppm/°C
- Temperature Coeff. -: 90ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
