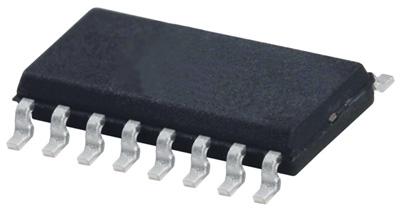

ONSEMI - MC14555BDG - Decoder / Demultiplexer, 2 Gate, 2 Input, 8 Output, 8.8 mA, 3 V to 18 V, SOIC-16
- Logic Family / Base Number: MC14555
- Logic Type: Decoder / Demultiplexer
- No. of Outputs: 8Outputs
- Logic Case Style: SOIC
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: MC145
- Logic IC Base Number: 4555
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 14555
- IC Applications: Address Decoding, Code Conversion, Memory Selection Control
- IC Generic Number: 4555
- Logic Function Number: 14555
- Logic IC Base Number: 4555
- Logic IC Function: Dual 1-of-4 Decoder/Demultiplexer
- No. of Channels: 2Channels
- No. of Gates: 2
- No. of Inputs: 2
- Operating Temperature Range: -55°C to +125°C
- Output Current Max: 8.8mA
- Ratio: 1
- Supply Voltage: 15V
- Supply Voltage Range: 3V to 18V
