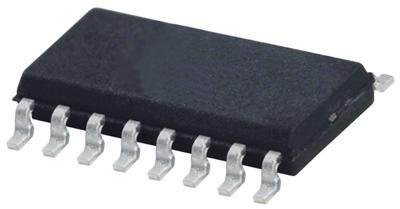

ONSEMI - MC14044BDG - Latch, MC14044, SR, Tri State, 175 ns, 8.8 mA, SOIC
- Logic Family / Base Number: MC14044
 - Latch Type: SR
 - IC Output Type: Tri State
 - Propagation Delay: 175ns
 - Output Current: 8.8mA
 - Logic Case Style: SOIC
 - No. of Pins: 16Pins
 - Supply Voltage Min: 3V
 - Supply Voltage Max: 18V
 - No. of Bits: 4bit
 - Logic IC Family: MC140
 - Logic IC Base Number: 4044
 - Operating Temperature Min: -55°C
 - Operating Temperature Max: 125°C
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: -
 - SVHC: No SVHC (27-Jun-2018)
 - Base Number: 14044
 - IC Generic Number: 4044
 - Logic Function Number: 14044
 - Logic IC Base Number: 4044
 - Logic IC Function: Quadruple NAND R/S Latch (3-State)
 - No. of Inputs: 8
 - Operating Temperature Range: -55°C to +125°C
 - Supply Voltage: 15V
 - Supply Voltage Range: 3V to 18V
