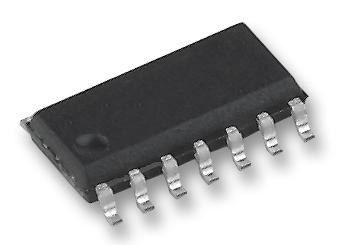

ONSEMI - MC14013BDG - Flip-Flop, Complementary Output, Positive Edge, MC14013, D, 150 ns, 14 MHz, 8.8 mA, SOIC
- Logic Family / Base Number: MC14013
- Flip-Flop Type: D
- Propagation Delay: 150ns
- Frequency: 14MHz
- Output Current: 8.8mA
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Trigger Type: Positive Edge
- IC Output Type: Complementary
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: MC140
- Logic IC Base Number: 4013
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 14013
- IC Generic Number: 4013
- Logic Function Number: 14013
- Logic IC Base Number: 4013
- Logic IC Function: Dual D-Type Flip-Flop
- No. of Gates: 2
- No. of Inputs: 1
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage: 15V
- Supply Voltage Range: 3V to 18V
