Description

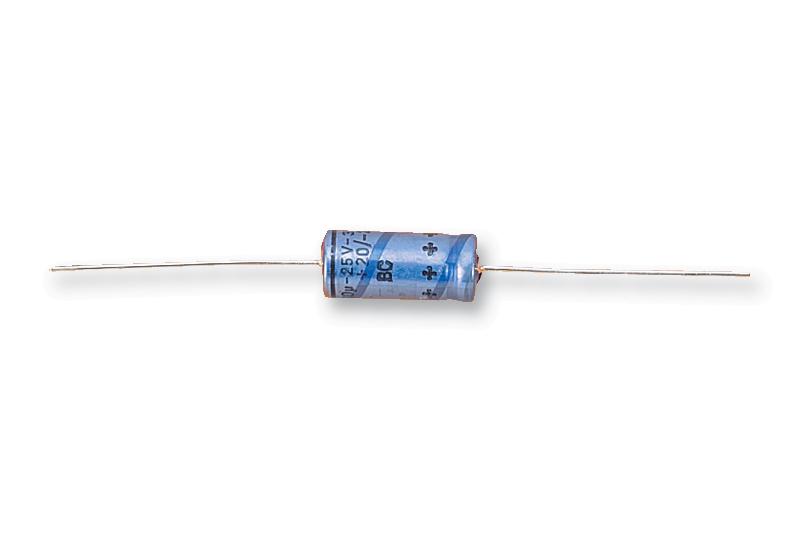

VISHAY - MAL213836471E3 - Electrolytic Capacitor, 470 µF, 25 V, ± 20%, Axial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 470µF
- Voltage Rating: 25V
- Product Range: 138 AML Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Axial Leaded
- Diameter: 10mm
- Lead Spacing: -
- Height: 25mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: 0.44ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 440mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- External Length / Height: 25mm
- Leakage Current: 28µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Operating life Time: 2000h
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 105°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 25V
- Voltage Rating V DC: 25V
