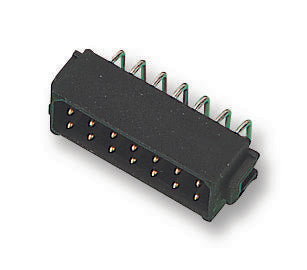

M80-8411042 Plug, Right Angle, 2Row, 10WAY Harwin

HARWINSKU: M80-8411042 Order code: 9789391

Price:
Sale price€7,26

Tax included Shipping calculated at checkout

Stock:
In stock (46 units), ready to be shipped

Documents et téléchargements

Description

HARWIN - M80-8411042 - Pin Header, Right Angle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 10 Contacts

  • Pitch Spacing: 2mm
  • No. of Contacts: 10Contacts
  • Gender: Plug
  • Product Range: Datamate L-Tek M80 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 25mohm
  • Contact Termination: Through Hole Right Angle
  • Current Rating: 3.3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100mohm
  • Lead Spacing: 2mm
  • Material: Glass Filled Thermoplastic
  • No. of Mating Cycles: 500
  • Proof Voltage: 360V
  • Termination Method: Solder
  • Wire Size AWG Max: 22AWG
  • Wire Size AWG Min: 28AWG
  • Working Voltage: 120V
