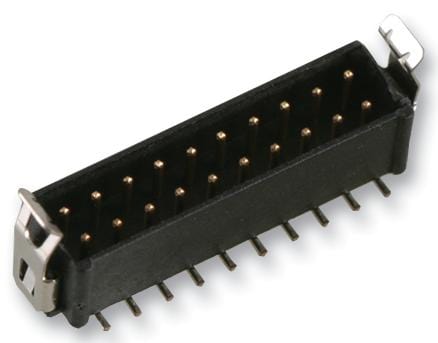

HARWIN - M80-8281642 - Pin Header, with Friction Latch, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 16 Contacts
- Pitch Spacing: 2mm
- No. of Contacts: 16Contacts
- Gender: Header
- Product Range: Datamate L-Tek M80 Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Current Rating: 3A
- De-mating Force: 1.8N
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2mm
- Material: Polyamide
- Mating Force: 2.8N
- No. of Mating Cycles: 500
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Withstand Voltage: 360V
- Working Voltage: 120V
