Description

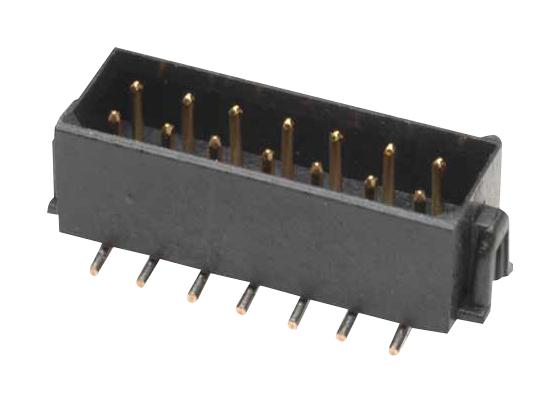

HARWIN - M80-8262042 - Pin Header, Unlatched, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 20 Contacts, Surface Mount
- Pitch Spacing: 2mm
- No. of Contacts: 20Contacts
- Gender: Header
- Product Range: Datamate L-Tek M80 Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Contact Resistance: 25mohm
- Contact Termination: Solder
- Flammability Rating: UL94V-0
- Insulation Resistance: 100Mohm
- Lead Spacing: 2mm
- Material: Polyamide 46
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2mm
- Termination Method: Solder
- Working Voltage: 120V
